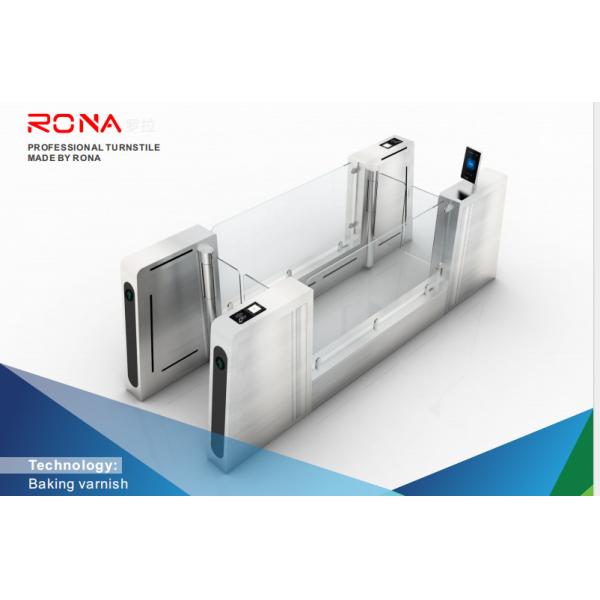

Baking Varnish Multiple Turnstile 3000MM*200MM*1200MM With 600MM
Passage Width
Prduct Decribetion
1) Visitors enter and exit the multiple turnstile need to show the
authorization device , like IC/ID card, barcode paper
2) Visitors enter and exit the multiple turnstile will be take
pictures as proof , parents will know when and who pick up the
kids.
Standard functions & features of Swing Barrier Gate
1. Alarm function:when arms are pushed by force illegally, alarm
will be triggered automatically and arms will be set locked.
turnstile can check by itself when it is have problem, it is good
for customer to maintain and use
2. Turnstile can setting the working condition by press the button
of main control board.
3. Anti-pinch function: turnstile have Mechanical/ infrared
induction Anti-pinch functions( when it is meet the hinder during
the reset time, the electrical machine closed work automatically in
specified time, the turnstile will default the delayed and reset
again till reset succeed)
4. The turnstile will closed the door when somebody enter the gate
illegal, Tailgating or break into negative direction gate.
5. Before received the open signal, the turnstile will lock
automatically
6. The arm have the collision avoidance function: when the
turnstile arm closed, if it is under the collision, the arm will
open to protect the Transmission of inner machine.
7. Automatic Reset Functions: after you swap the card, during the
specific time (the system is 10s), if you didn’t pass the
turnstile, the system will cancel your authority automatically to
pass the gate, (reset time is 1~60s you can adjust it what time is
suit for you). totally meet the fire protection needs
8. The turnstile can work with door access control system/
consumption system /biometric recognition system/ ESD system and so
on
9. The turnstile is bidirectional (pedestrian can enter and exit
from one pair of turnstiles)
10. Can manager and long-range control the turnstile directly by
managing the computer.
11. Flashing light prompt function: it is convenient to find the
turnstile problem by administrative staff
Tenical Parameters
| Product size(mm) | 3000L*200W*1200H |
| Housing material | 304 stainless steel |
| Main board type | V3.1 |
| Main board chip | Arm |
| Motro type | Brushless servo motor |
| Movement | Anti-collision and non-destruction movement |
| Normal running life | 10 million times |
| Opening speed | 0.5 seconds(adjustable) |
| Passage width | 600MM |
| Opening way when power off | Automatic unlocking when power off |
| Reset time of swing arm | 3 seconds |
| Reset time after breakdown | 10 seconds |
| Workong voltage | AC100-220V,50/60HZ |
| Working power | 100W |
| Communication interface | RS232 |
| Input interface | Dry contact |
| Working environment | -20℃ ~ +70℃ |
